Panel AC
Reliable cooling for sensitive electronics in demanding environments. Designed for CNC machines, telecom, medical, and industrial applications.
Select Model:

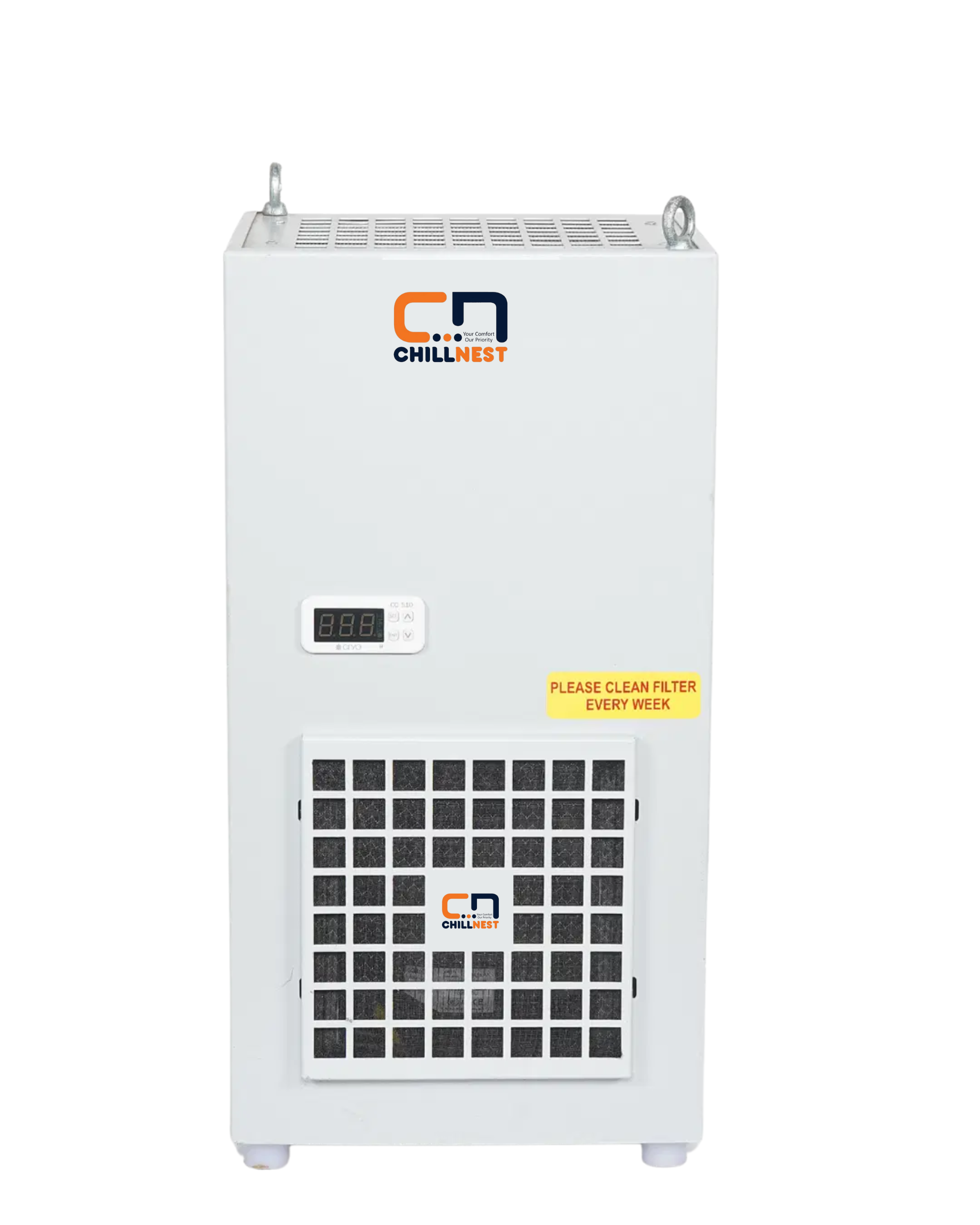

Vertical Panel AC
Vertical Panel Airconditioner – ideal for control cabinets, provides NEMA 4X protection with 250W to 14000W cooling capacity.
250W-14kW
Cooling Capacity
NEMA 12/4/4X
Protection Class
Available Models & Variants
| Model | Cooling Capacity | Voltage | Dimensions (mm) |
|---|---|---|---|
| HC000X1AC | 250W | 230V/1ph | 400×300×200 |
| HC000X2AC | 600W | 230V/1ph | 500×400×250 |
| HC000X3AC | 1000W | 230V/1ph | 600×450×280 |
| HC000X5AC | 1500W | 230V/1ph | 650×500×300 |
| HC000X6AC | 2000/2500W | 230V/1ph | 750×550×350 |
| HC001X0AC | 3000/3500W | 400V/3ph | 850×600×400 |
| HC001X5AC | 5500W | 400V/3ph | 950×700×450 |
| HC002X0AC | 7000W | 400V/3ph | 1050×800×500 |
